PRODUCT

ENTERPRISE BRIEF INTRODUCTION

PA866k Series Programable intelligent Meter

Application Scenarios:Used for power monitoring & measurement system of the power station automization,power distribution,smart buildings,communal facilities,industrial and mining enterprises etc.

automization,

PRODUCT OVERVIEW

The series of instrument can measure and display current,voltage,power,power factor and other electrical parameters in the power grid,and can set the magnification through the panel membrane switch,etc,can have RS-485 communication interface and adopt MODBUS protocol,it can also convert the power signal into a standard DC analog signal transmission output,or with relay alarm output and the delay action time can be set.

KEY FEATURE

  • Overall monitoring and parameter measurement
  • High protection level
  • Modular design
  • More functions customizable



Accuracy grade

0.2, 0.5, (reactive: 1)

Display Range

0~9999,-1999~9999,-9999~9999,magnification to be set arbitrarily

Input

Standard Value

Voltage: 100V, 220V, 380V

Current: 1A, 5A, 75mv



Overdose

Constant 1.2times, instantaneous Current:10times/5s, instantaneous Voltage:2times/10s



Frequency

45~65Hz



Impedance

Normal current side: ≤0.10

Power Supply

Voltage Range

AC220V (default)

AC/DC85~260V (specified when order)



Power Dissipation

<5VA

Output

Simulation Value

4~20mA



Communication

RS485 MODBUS protocol, 1 stop bit, 8 stop bit, 1 stop bit





Baud rate: 2400/4800/9600/19200/38400



Relay Alarm

Passive dimentional electrical conversion node: 3A/30VDC, 3A/22OVAC;

Limitation alarm





Down limit alarm, down or upper limit alarm, delayed time to be adjusted.

Power Frequency withstand Voltage

2kV/1 min(AC efficiency value)

Insulation Resistance

≥100MQ

MTTF

≥60000h

Working Condition

Temperature

Working: -15~+55℃

Storage: -25≈+70℃



Relevant Humidity

≤88%RH



Elevation

≤2500m, ≥4000m

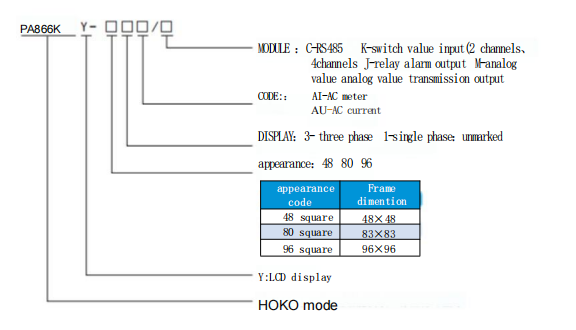

产品选型:

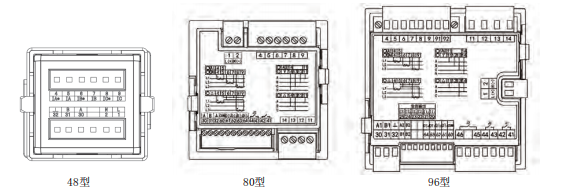

Unit Outline

Frame Dimention

Shell Dimention

Aperture Dimention

Aperture deepth*

48 square

48×48

44.5×44.5

45×45

80

80 square

83×83

74.5×74.5

75×75

37

96 square

96×96

90.5×90.5

91×91

42

PA866k Series Programable intelligent Meter
