Commodity: Hi-Bus KNX 640mA Power Supply Module

Model No.: HKL/D0640412T

Application Scenarios:Office buildings,shopping malls,libraries, convention and exhibition centers and other occasions that require intelligent control of lighting

Product Overview:

providing working voltage for BCU unit. Bus current, bus voltage, and other communication signals can be transmitted and diagnosed through the KNX bus.

Key Features:

  • Power supply and communication for KNX system equipment
  • 2-ways outputs:                                                                                                                                                                                   a.30V DC output with carrier communication                                                                                                                                   b.Auxiliary power supply 30 V DC output without communication
  • Input: 220V AC; total output up to 640mA
  • High efficiency(about 80% efficacy)
  • Stable current output
  • Short circuit;,overload & overheat protection.

Power Supply

Operating Voltage

100…264V AC (50/60Hz)



Efficiency

80%

Output



Number of Dimming Channels

2



Model

HKL/D0640412T



Output Voltage

30V DC+1/-2V (one is a 30V DC output with carrier communication, and the other is an auxiliary 30V DC output without communication).



Total output current

640mA



Continuous short-circuit current

<1.3 A

Connection



EIB/KNX

EIB bus connection terminals



Load Output

2 spiral screws to achieve auxiliary power output



Load Input

3 spiral screws are used to achieve AC power input, and L, N, and E are wired separately.

KNX Bus Operation and Display

Key

Reset restart Key



Key and Red LED

After pressing the reset and restart Key, the red LED will light up and the bus voltage will be disconnected. After 20 seconds, the power module will reset and work normally.

(Note: the voltage of the auxiliary power supply is not affected by the reset).

Green LED indicator light

80mA Green LED

320mA Green LED

640mA Green LED

There are three green LEDs in total, which are used to display the load current of 80mA, 320mA, and 640mA. When the load of the power supply reaches a certain value, the corresponding LED light will light up.

OLP/PW

2 colors of LED indicator lights

Green LED Flashing

Indicates that the power module is working properly



Red LED

When the power module experiences overload, the red LED lights up for 2 seconds. After 2 seconds, the power module enters a reset and restarts, and the bus voltage is disconnected. Wait for 25 seconds for the reset before the power module retests. If it is still overloaded, repeat the above process; If there is no overload detected, the bus voltage will return to normal.

Product Protection



Short circuit protection

overload protection

Overheat protection

Protection type level

IP20, EN60 529



Environmental Temperature

Operating temperature

-5 ℃~45 ℃



Storage temperature

-25 ℃~55 ℃



Transportation temperature

-25 ℃~70 ℃

Environmental

condition

Humidity

no condensation

Installation Method

Standard 35mm DIN rail installation

Installed on a 35mm rail, DIN EN 60 715

Dimensions

(H*W*D)

90×72×64 mm



CE Standard

Complies with EMC standards and low voltage standards



Weight

0.5KG





Model Selection:

HKL/D0640412T(640mA)

HKL/D0960412T(960mA)

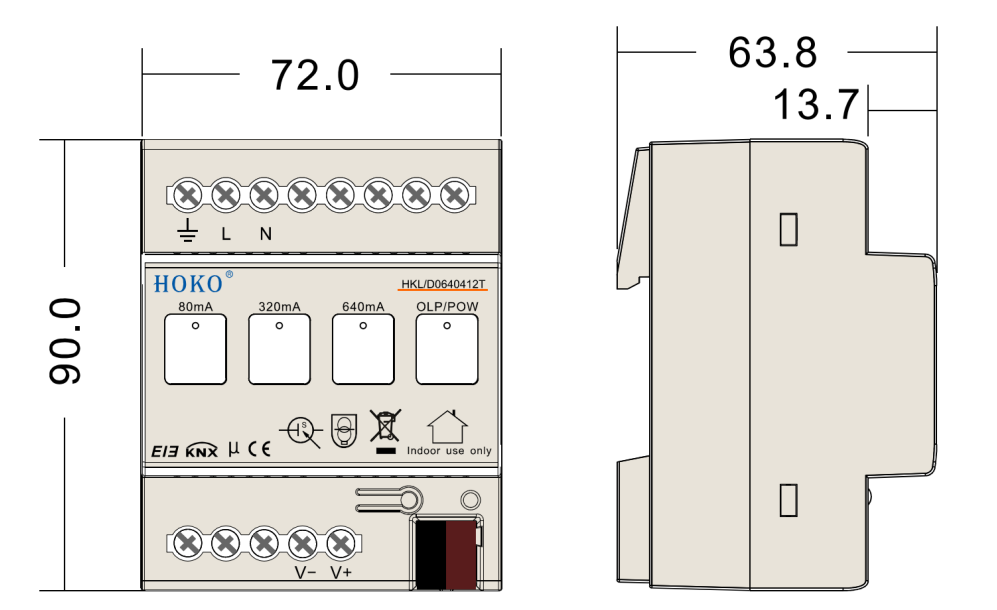

Dimention:

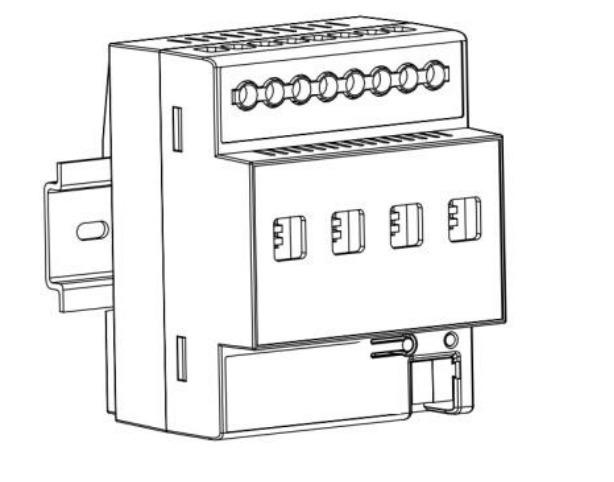

Din rail installation:

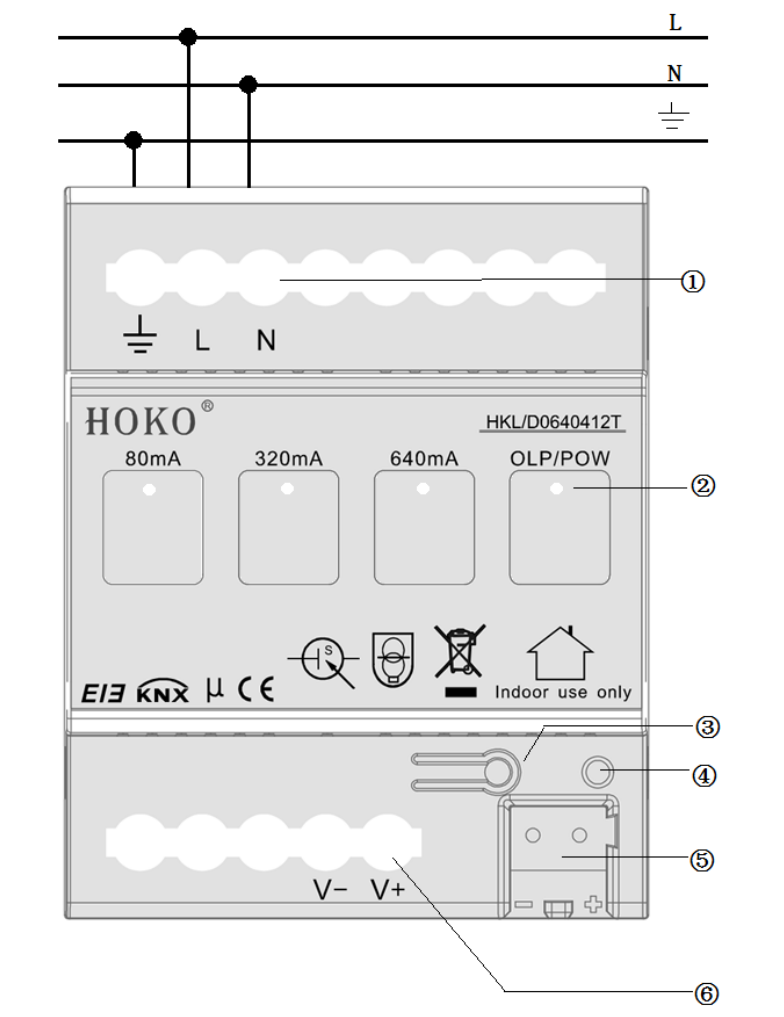

Wiring diagram:

  1. AC power supply input terminal interface
  2. Load indicator(green),over load(red),working(green)
  3. Reset button
  4. Reset indicator(red)
  5. EIB power supply output terminal interface
  6. Auxiliary power supply output terminal interface

Hi-Bus KNX 640mA Power Supply Module
